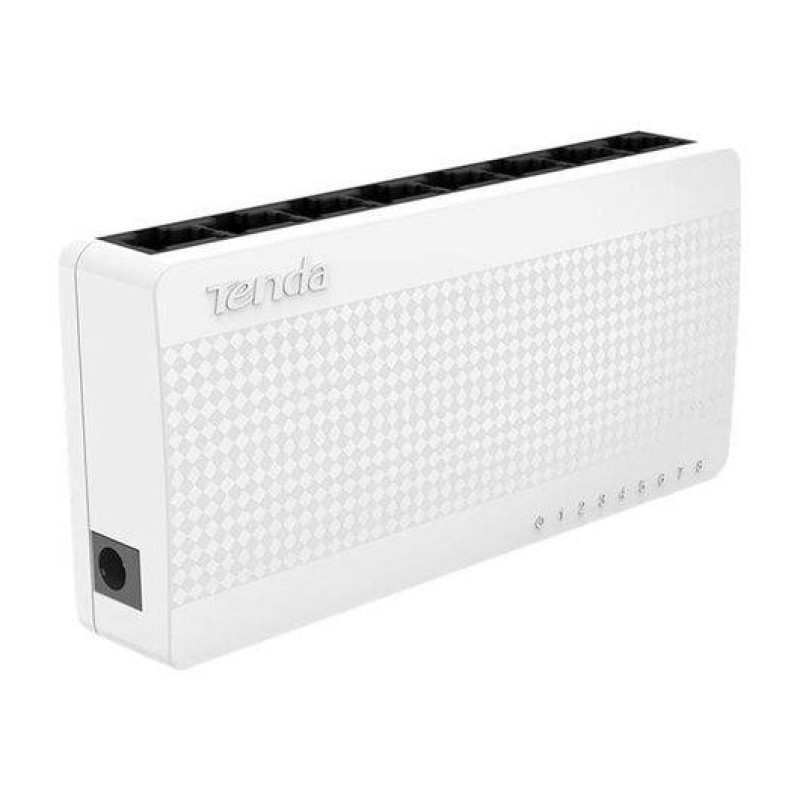

The Tenda S108 v8.0 is a fanless, rack- or desktop-mountable 8-port 10/100 Mbps Ethernet switch offering plug‑and‑play simplicity. With Auto‑MDI/MDIX, store-and-forward switching, and low power consumption (~2.15 W), it delivers reliable connectivity for homes, small offices, dorms, IP cameras, and entertainment systems.



Specifications

Ports & Performance

• 8× RJ45 Ports: 10/100 Mbps, Auto‑Negotiation, Auto‑MDI/MDIX ([turn0search0], [turn0search1])

• Switching Capacity: ~1.6 Gbps back-plane, ~14.88 M pps; store‑and‑forward operation ([turn0search3])

• MAC Table: 1 K entries, auto-learning/aging ([turn0search3])

---

Design & Installation

• Form Factor: Fanless plastic housing; desktop or wall-mountable with included bracket ([turn0search3])

• LEDs: Power + 8 × Link/Activity indicators ([turn0search3])

---

Power & Energy Efficiency

• Power Supply: External 5 V ⎓ 0.6 A adapter for 100–240 VAC input ([turn0search3])

• Power Draw: Max ~2.15 W at 220 VAC; energy‑saving design ([turn0search3])

---

Physical & Environmental

• Size & Weight: 124 × 59 × 23.1 mm; ~144 g ([turn0search3])

• Operating Temp: 0–45 °C; Storage: –40–70 °C; Humidity: 10–90 % non-condensing ([turn0search7])

• Certifications: CE, FCC, RoHS, C‑Tick, EAC, NOM; 3-year warranty ([turn0search3], [turn0search6])
