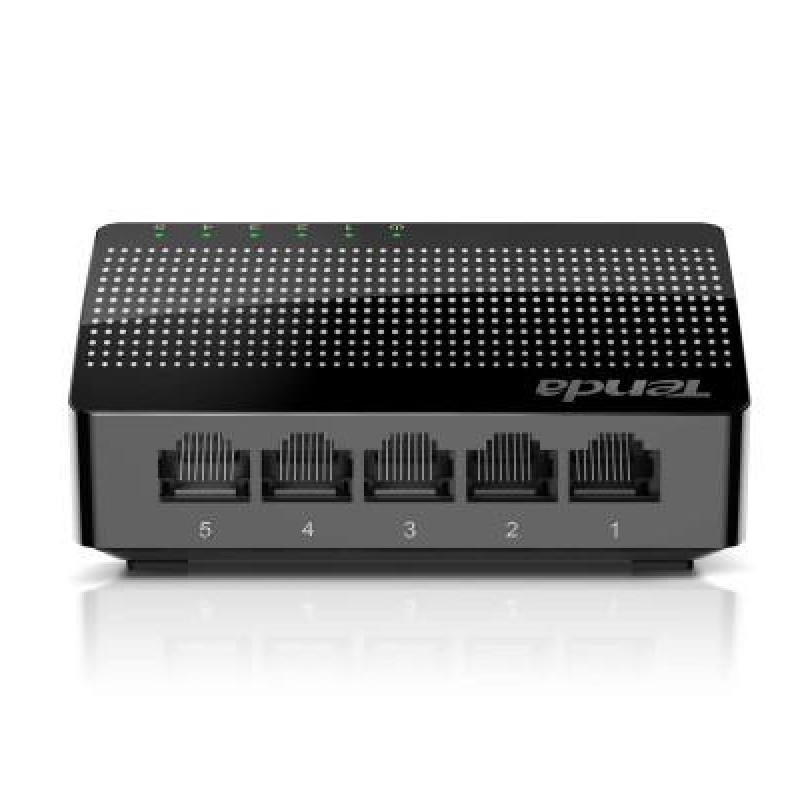

Tenda SG105 5-Port Gigabit SOHO Switch

Tenda SG105 5-Port Gigabit SOHO Switch
Tenda SG105 5-Port Gigabit SOHO Switch
  • Stock: Out Of Stock
  • Brand: TENDA
  • Model: TENDA SG105
  • EAN: 6932849431162

The Tenda SG105 is a compact, fan‑less, unmanaged 5‑port Gigabit switch with auto‑negotiation and Auto‑MDI/MDIX. Supporting store‑and‑forward operation and jumbo frames, it's designed for plug‑and‑play expansion of home or small office networks—ideal for connecting PCs, NAS units, gaming consoles, or IP cameras reliably and silently.



Specifications

Ports & Performance

  • 5× RJ45 Ports: 10/100/1000 Mbps with Auto‑MDI/MDIX; full-duplex flow control (IEEE 802.3/802.3u/802.3x/802.3ab) :contentReference[oaicite:1]{index=1}
  • Switching Capacity: 10 Gbps backplane; ~7.44 Mpps rate; supports jumbo frames :contentReference[oaicite:2]{index=2}
  • MAC Table: ~2 K entries with auto-learning and aging :contentReference[oaicite:3]{index=3}

Design & Installation

  • Chassis: Fanless plastic enclosure; desktop or wall-mountable (brackets optional) :contentReference[oaicite:4]{index=4}
  • LED Indicators: Power + link/activity per port :contentReference[oaicite:5]{index=5}
  • ESD Protection: Air ±8 kV; contact ±6 kV :contentReference[oaicite:6]{index=6}

Power & Efficiency

  • Power Input: AC 100–240 V → 5 V ⎓0.6 A via external adapter :contentReference[oaicite:7]{index=7}
  • Consumption: Idle ~0.5 W; max ~2.5 W :contentReference[oaicite:8]{index=8}

Physical & Environmental

  • Dimensions: 96 × 66 × 23 mm; Weight ~144 g :contentReference[oaicite:9]{index=9}
  • Operating Temp: 0–45 °C; Storage: −40–70 °C; Humidity: 10–90 % non‑condensing :contentReference[oaicite:10]{index=10}
  • Certifications: CE, FCC, RoHS; limited lifetime warranty (varies by region) :contentReference[oaicite:11]{index=11}
