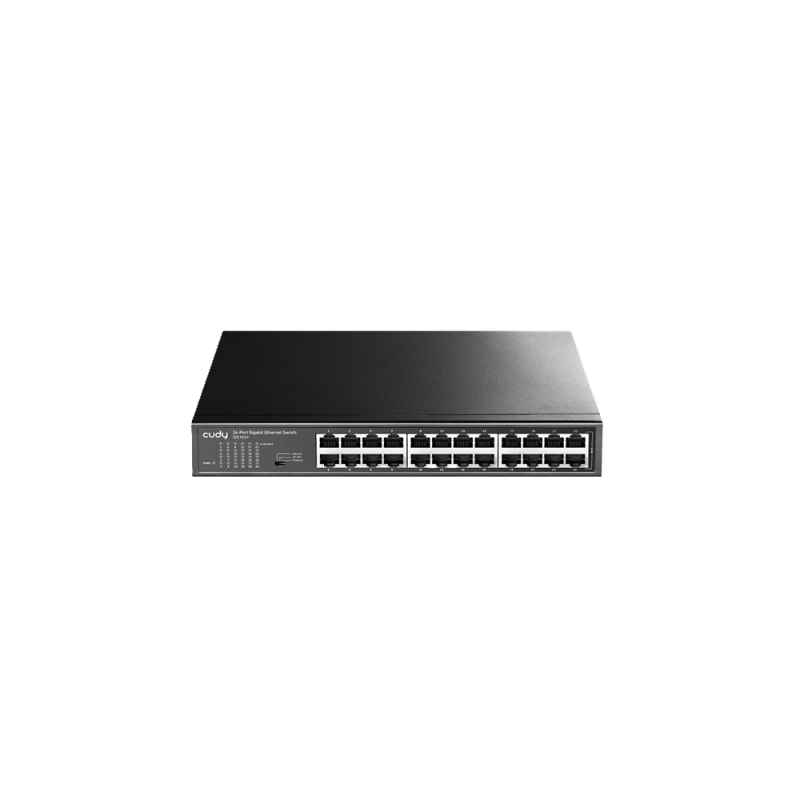

The Cudy GS1024 3.0 is a 24‑port, fan‑free gigabit Ethernet switch designed for noise‑sensitive environments. It offers versatile VLAN and “Extend” modes, supports long‑range transmission, QoS, IGMP snooping, loop prevention, and comes in a compact desktop/rackmount metal chassis.



Specifications

Ports & Modes

• 24× RJ45 Ports: 10/100/1000 Mbps with Auto‑Negotiation & Auto‑MDI/MDIX :contentReference[oaicite:0]{index=0}

• VLAN Mode: Ports 1–22 isolated from each other, communicate only via uplinks :contentReference[oaicite:1]{index=1}

• Extend Mode: Ports 1–22 support up to 250 m @10 Mbps on Cat 5e+ :contentReference[oaicite:2]{index=2}

---

Performance & Management

• Switching Capacity: 48 Gbps back‑plane; 35.7 Mpps packet rate :contentReference[oaicite:3]{index=3}

• MAC Table: 8K entries, auto‑learning and aging :contentReference[oaicite:4]{index=4}

• QoS & IGMP: DSCP/802.1p QoS, IGMP snooping, loop prevention, 802.3x flow control :contentReference[oaicite:5]{index=5}

---

Hardware & Power

• Chassis: Fanless metal housing, desktop/rackmount (brackets included) :contentReference[oaicite:6]{index=6}

• Power: Internal PSU 100–240 VAC, <15 W consumption :contentReference[oaicite:7]{index=7}

• Dimensions: 270 × 182 × 44 mm; Weight: ~1.06 kg :contentReference[oaicite:8]{index=8}

---

Environment & Certifications

• Operating Temp: 0–40 °C; Storage: –40–70 °C; Humidity: 0–90 % non-condensing :contentReference[oaicite:9]{index=9}

• Certifications: CE, FCC, RoHS compliant :contentReference[oaicite:10]{index=10}
