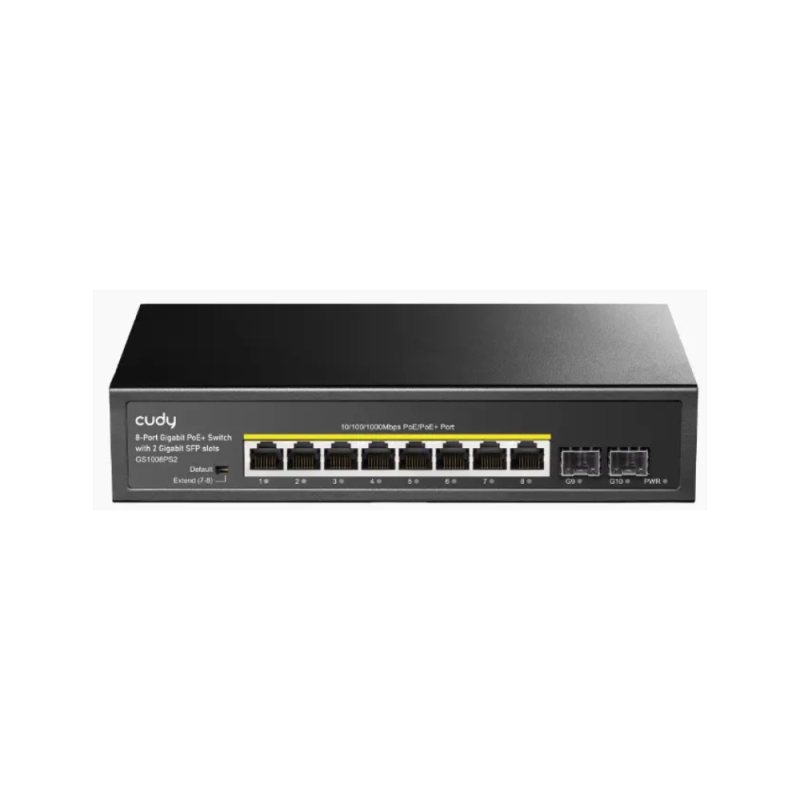

The Cudy GS1008PS2 is a silent, rack-mountable 8-port Gigabit PoE+ switch designed
for high-density power and data delivery in SMB and enterprise edge networks.
Equipped with a 120 W internal power supply and dual SFP uplinks, it supports
VLAN isolation, long-range Extend mode, and PoE Watchdog protection—making it
ideal for VoIP systems, IP cameras, and wireless access point deployments.
Features
Feature
Details
Device Type
Unmanaged Gigabit PoE+ switch with dual SFP uplinks
PoE Ports
8 × RJ45 Gigabit PoE+ ports, IEEE 802.3af/at compliant, up to 30 W per port
Total PoE Budget
120 W internal power supply
Uplink Interfaces
2 × Gigabit SFP fiber uplink slots
Extend Mode
Ports 7–8 support long-range transmission up to 250 m at 10 Mbps
VLAN Mode
Isolates PoE ports from uplinks for improved network security
PoE Watchdog
Automatically power-cycles unresponsive PoE devices in Extend or VLAN modes
Switching Capacity
20 Gbps backplane bandwidth
Forwarding Rate
Up to 14.88 Mpps packet forwarding
MAC Address Table
2K MAC address entries
Protection
ESD protection 6 kV (contact), 8 kV (air); surge protection up to 2 kV (DM) and 4 kV (CM)
Chassis
Fanless metal chassis, desktop or rack-mountable design
Dimensions
220 × 161 × 44 mm
Operating Environment
Operating temperature 0–40 °C; storage –40–70 °C; humidity 10–90% RH
