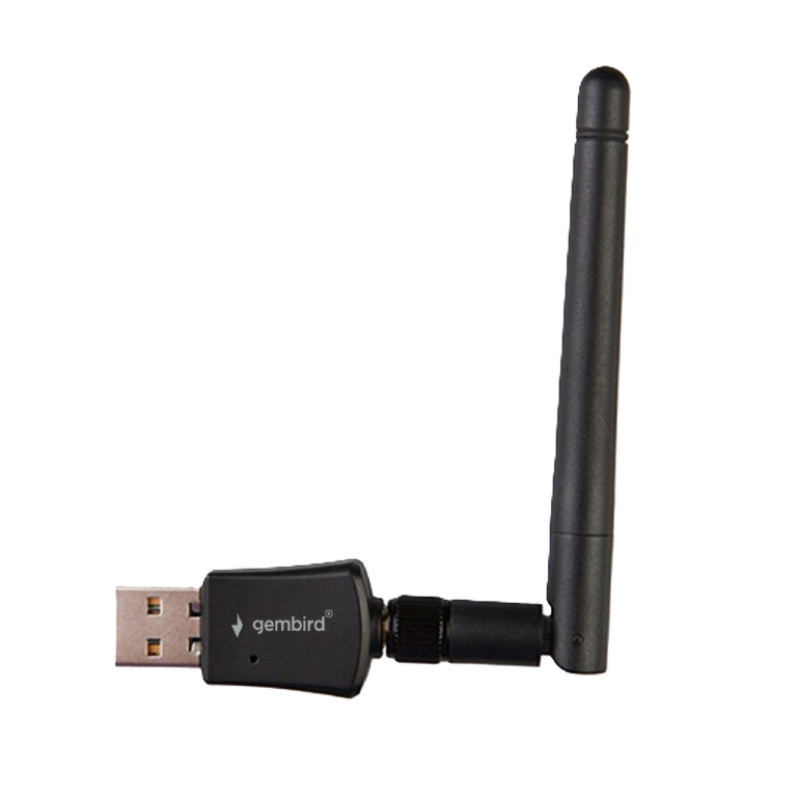

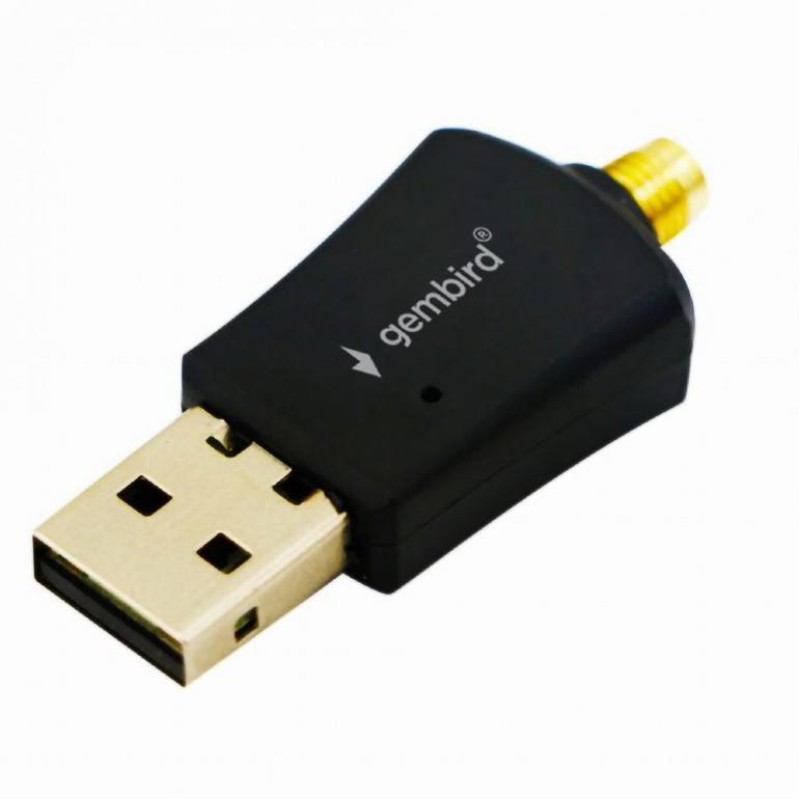

The Gembird WNP‑UA300P‑02 High‑Power USB Wi‑Fi Adapter is a compact yet powerful solution to boost your PC or laptop wireless performance. Equipped with a detachable 5 dBi external antenna and an internal PIFA antenna, it supports IEEE 802.11b/g/n (Wi‑Fi 4) at speeds up to 300 Mbps in the 2.4 GHz band, making it ideal for streaming, browsing, and connecting to distant networks.



Specifications

General

• Standards & Speed: IEEE 802.11b/g/n; up to 300 Mbps @2.4 GHz :contentReference[oaicite:1]{index=1}

• Chipset: Realtek RTL8192EU :contentReference[oaicite:2]{index=2}

• Ciphering: 64/128‑bit WEP, WPA/WPA2‑PSK (TKIP/AES) :contentReference[oaicite:3]{index=3}

---

Antenna & RF

• Antenna: 5 dBi external (detachable, SMA) + internal PIFA :contentReference[oaicite:4]{index=4}

• RF Power: Up to 20 dBm; Receiver sensitivity: e.g., –68 dBm @54/270 Mbps :contentReference[oaicite:5]{index=5}

---

Physical & Power

• Dimensions: 45 × 10 × 10 mm; Weight: 35 g :contentReference[oaicite:6]{index=6}

• Operating Temp: –20 °C to +70 °C :contentReference[oaicite:7]{index=7}

• Power Consumption: USB‑bus powered, 5 V DC up to 0.5 A :contentReference[oaicite:8]{index=8}

---

Compatibility

• OS Support: Windows XP/Vista/7/8/10/11 (driver CD included) :contentReference[oaicite:9]{index=9}

• Certifications: CE, RoHS; EAN: 8716309119641 :contentReference[oaicite:10]{index=10}
